1. iLane.evo

iLane.evo

Conveyor height input area	approx 800 mm
Conveyor height diversion area	approx 950 mm
Conveyor height collection area	approx 800 mm
Conveyor speed	0.2 m/sec
Max. tray size	640 x 530 x 90 mm
Max. conveyor load	25 Kg / zone
Theoretical throughput	857 bags/h
Power Consumption	Max. 1080 watt
Length	12820 - 25000 mm

2. X-Ray 5030-si

Tunnel Dimension	532[W] x 330[H] [mm] . 21"[W] x 13"[H]
Max Object Size	530[W] x 320[H] [mm] . 20.9"[H] x 12.6"[H]
Conveyor Hight	approx. 190mm [7.4"] / 782.5mm [30.6"] with carriage
Conveyor Speed	approx. 0.18 / 0.22 [m/s]
Max Conveyor Load	60 Kg [132lbs]
Resolution [wire detectabillity]	Standard: 38AWG [0.1mm]. typical 39AWG [0.09mm]
Penetration Steel	Standard : 14mm . typical 16mm
External Dose Rate	<= 2microSv/h [0.2mrem]
Film Safety	Guaranteed even for high speed films up to ISO 1600 [33DIN]

3. X-Ray 6040-i

Tunnel Dimension	620[W] x 418[H] [mm] . 24.4"[W] x 16.5"[H]
Max Object Size	615[W] x 410[H] [mm] . 24.2"[H] x 16.1"[H]
Conveyor Hight	approx. 694mm [27.3"]
Conveyor Speed	approx. 0.2 / 0.24 [m/s]
Max Conveyor Load	160 Kg [352lbs]
Resolution [wire detectabillity]	Standard: 39AWG [0.09mm]. typical 40AWG [0.08mm]
Penetration Steel	Standard : 30mm . typical 31mm
External Dose Rate	<= 2microSv/h [0.2mrem]
Film Safety	Guaranteed even for high speed films up to ISO 1600 [33DIN]

4. X-Ray 6040-2is

Tunnel Dimension	620[W] x 420[H] [mm] . 24.4"[W] x 16.5"[H]
Max Object Size	615[W] x 410[H] [mm] . 24.2"[H] x 16.1"[H]
Conveyor Hight	approx. 800mm [31.4"]
Conveyor Speed	approx. 0.2 / 0.24 [m/s]
Max Conveyor Load	160 Kg [352lbs]
Resolution [wire detectabillity]	Standard: 39AWG. typical 40AWG High : 40AWG. typical 41AWG
Penetration Steel	Standard : 35mm . typical 37mm
External Dose Rate	< 1microSv/h [0.1mrem]
Film Safety	Guaranteed even for high speed films up to ISO 1600 [33DIN]

5. X-Ray 6040-aX

Tunnel Dimension	620[W] x 420[H] [mm] . 24.4"[W] x 16.5"[H]
Max Object Size	615[W] x 410[H] [mm] . 24.2"[H] x 16.1"[H]
Conveyor Hight	approx. 800mm [31.4"]
Conveyor Speed	approx. 0.2 / 0.24 [m/s]
Max Conveyor Load	160 Kg [352lbs]
Resolution [wire detectabillity]	Standard: 40AWG [0.08mm Cu]. typical 41AWG [0.07mm Cu]
Penetration Steel	Standard : 35mm . typical 37mm
External Dose Rate	<= 2microSv/h [0.2mrem]
Film Safety	Guaranteed even for high speed films up to ISO 1600 [33DIN]

6. X-Ray 6040-aTiX

Tunnel Dimension	620[W] x 420[H] [mm] . 24.4"[W] x 16.5"[H]
Max Object Size	615[W] x 410[H] [mm] . 24.2"[H] x 16.1"[H]
Conveyor Hight	approx. 800mm [31.4"]
Conveyor Speed	approx. 0.2 / 0.24 [m/s]
Max Conveyor Load	160 Kg [352lbs]
Resolution [wire detectabillity]	Standard: 40AWG [0.08mm Cu]. typical 41AWG [0.07mm Cu]
Penetration Steel	Standard : 35mm . typical 37mm
External Dose Rate	<= 2microSv/h [0.2mrem]
Film Safety	Guaranteed even for high speed films up to ISO 1600 [33DIN]

7. X-Ray 6040-C

Tunnel Dimension	620[W] x 420[H] [mm] . 24.4"[W] x 16.5"[H]
Max Object Size	615[W] x 410[H] [mm] . 24.2"[H] x 16.1"[H]
Conveyor Hight	approx. 800mm [31.5"]
Conveyor Speed	approx. 0.2 / 0.24 [m/s]
Max Conveyor Load	165 Kg
Resolution [wire detectabillity]	Standard: 39AWG [0.09mm Cu]. typical 40AWG [0.08mm Cu]
Penetration Steel	Standard : 35mm . typical 37mm
External Dose Rate	< 1microSv/h [0.1mrem]
Film Safety	Guaranteed even for high speed films up to ISO 1600 [33DIN]

8. X-Ray 6040-CTiX

Tunnel Dimension	620[W] x 420[H] [mm] . 24.4"[W] x 16.5"[H]
Max Object Size	615[W] x 410[H] [mm] . 24.2"[H] x 16.1"[H]
Conveyor Hight	approx. 800mm [31.5"]
Conveyor Speed	approx. 0.2 / 0.24 [m/s]
Max Conveyor Load	165 Kg
Resolution [wire detectabillity]	Standard: 39AWG [0.09mm Cu]. typical 40AWG [0.08mm Cu]
Penetration Steel	Standard : 35mm . typical 37mm
External Dose Rate	< 1microSv/h [0.1mrem]
Film Safety	Guaranteed even for high speed films up to ISO 1600 [33DIN]

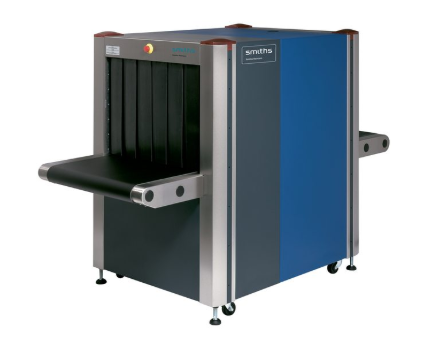

9. X-Ray 7555-i

Tunnel Dimension	755[W] x 555[H] [mm] . 29.7"[W] x 21.9"[H]
Max Object Size	750[W] x 550[H] [mm] . 29.5"[H] x 21.7"[H]
Conveyor Hight	approx. 750mm [29.5"]
Conveyor Speed	approx. 0.2 / 0.24 [m/s]
Max Conveyor Load	160 Kg [352 lbs]
Resolution [wire detectabillity]	Standard: 39AWG [0.09mm Cu]. typical 40AWG [0.08mm]
Penetration Steel	Standard : 30mm . typical 31mm
External Dose Rate	<= 2microSv/h [0.2mrem]
Film Safety	Guaranteed even for high speed films up to ISO 1600 [33DIN]

10. X-Ray 7555-si

Tunnel Dimension	755[W] x 555[H] [mm] . 29.7"[W] x 21.9"[H]
Max Object Size	750[W] x 550[H] [mm] . 29.5"[H] x 21.7"[H]
Conveyor Hight	approx. 755mm [29.7"]
Conveyor Speed	approx. 0.2 / 0.24 [m/s]
Max Conveyor Load	160 Kg [352 lbs]
Resolution [wire detectabillity]	Standard: 40AWG [0.08mm Cu]. typical 41AWG [0.07mm]
Penetration Steel	Standard : 35mm . typical 37mm
External Dose Rate	<= 2microSv/h [0.2mrem]
Film Safety	Guaranteed even for high speed films up to ISO 1600 [33DIN]

11. X-Ray 7555-ax

Tunnel Dimension	755[W] x 555[H] [mm] . 29.7"[W] x 21.9"[H]
Max Object Size	750[W] x 550[H] [mm] . 29.5"[H] x 21.7"[H]
Conveyor Hight	approx. 800mm [31.5"]
Conveyor Speed	approx. 0.2[m/s]
Max Conveyor Load	250 Kg [550 lbs]
Resolution [wire detectabillity]	Standard: 40AWG [0.08mm Cu]. typical 41AWG [0.07mm]
Penetration Steel	Standard : 35mm . typical 37mm
External Dose Rate	<= 2microSv/h [0.2mrem]
Film Safety	Guaranteed even for high speed films up to ISO 1600 [33DIN]

12. X-Ray 7555-aTiX

Tunnel Dimension	755[W] x 555[H] [mm] . 29.7"[W] x 21.9"[H]
Max Object Size	750[W] x 550[H] [mm] . 29.5"[H] x 21.7"[H]
Conveyor Hight	approx. 800mm [31.5"]
Conveyor Speed	approx. 0.2[m/s]
Max Conveyor Load	250 Kg [550 lbs]
Resolution [wire detectabillity]	Standard: 40AWG [0.08mm Cu]. typical 41AWG [0.07mm]
Penetration Steel	Standard : 35mm . typical 37mm
External Dose Rate	<= 2microSv/h [0.2mrem]
Film Safety	Guaranteed even for high speed films up to ISO 1600 [33DIN]

13. X-Ray 5800-CTX

Tunnel Opening	750mm[20.5in][max widht conveyor edge]. 408mm[16in][max height at max widht]
Max Object Size [W x H x L]	750 x 387 x 1200mm [at max widht] 242 x 600 x 1200mm [at max height]
Conveyor Hight	l[24in]
Belt speed	0.14m/s
Throughput	up to 400 - 450 BPH
BHS communication interface	ControlNet/100 Base T Ethernet direct to BHS PLC
Power consumption	Max 5.3kVA
Dimension [W x H x L]	1569 x 1550 x 2614mm
Weight	2449Kg

Detail Information please Contact AMBC
